-HEMATİT PİKİ -SFERO PİKİ -ÇELİK PİKİ

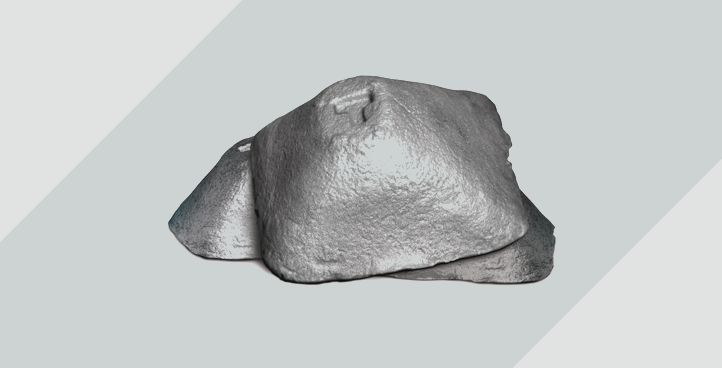

HEMATITE PIG IRON[also known as FOUNDRY PIG IRON] is used mainly in the manufacture of grey iron castings in cupola or induction furnaces

	C	Si	Mn	P	S
L1	3.50-4.50 %	3.20-3.60 %	0.40-0.80 %	0.08 % max	0.04 % max
L2	3.50-4.50 %	2.80-3.20 %	0.40-0.80 %	0.08 % max	0.04 % max
L3	3.50-4.50 %	2.40-2.80 %	0.40-0.80 %	0.08 % max	0.04 % max
L4	3.50-4.50 %	2.00-2.40 %	0.40-0.80 %	0.08 % max	0.04 % max
L5	3.50-4.50 %	1.60-2.00 %	0.40-0.80 %	0.08 % max	0.04 % max
L6	3.50-4.50 %	1.20-1.60 %	0.40-0.80 %	0.08 % max	0.04 % max
L5 – L6 Low Mn	3.50-4.50 %	1.00-2.00 %	0.099 % max	0.08 % max	0.04 % max
SIZE	10-12 kg ingots without notches
PACKING	Bulk



BASIC PIG IRON, used mainly in electric arc steelmaking



Basic Pig Iron	C	Si	Mn	P	S
LowMn	3.50-4.50 %	1.20 % max	0.099 % max	0.08 % max	0.05% max
PL1 / PL2	3.50-4.50 %	0.6-1.20 %	0.40-0.80 %	0.08 % max	0.05% max
SIZE	10-18 kg ingots without notches
PACKING	Bulk



NODULAR PIG IRON, used in the manufacture of ductile [also known as nodular or spheroidal graphite – SG] iron castings.

Nodular Pig Iron	C	Si	Mn	P	S
NODULAR	3.50-4.50 %	1.0 % max	0.05 % max	0.05 % max	0.015 % max
NODULAR HP	3.50-4.50 %	1.0 % max	0.04 % max	0.04 % max	0.010 % max
SIZE	10-12 kg ingots without notches
PACKING	Bulk
